power steering filter

Post in this forum for topics relating to suspension, steering, and brakes

Moderators: ron, bfons, GRNSHRK

Post Reply
tmoretta
Posts: 28
Joined: Mon Feb 06, 2017 8:30 pm
Location: Connecticut, U.S.A.

power steering filter

Post by tmoretta » Thu Jan 03, 2019 2:03 am

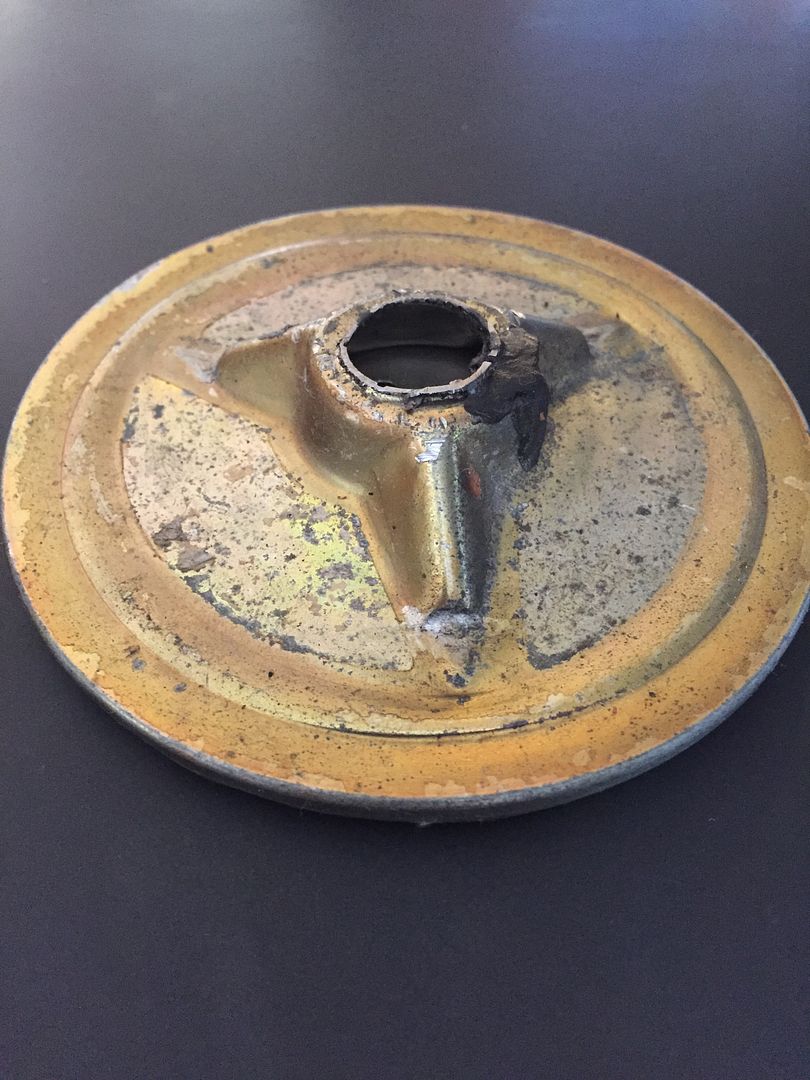

I am in the process of swapping out/rebuilding the power steering pump in my '88 M6. I ordered a new filter for the 3 rib covered filter. When I remove the filter I see no filter present in the can , other than the screen. Could it be none belongs there, or is mine missing?

User avatar
JCS
Bigcoupe supporter
Posts: 935
Joined: Wed Sep 22, 2010 11:06 pm
Location: Santa Ana, California, USA

Re: power steering filter

Post by JCS » Thu Jan 03, 2019 2:56 pm

missing
Jay
'88 M6, Red/Tan
To view my newest website, with 16 website links
Please read the instructions in RED, then on page 2,3,4 to view the info panel (CAPTIONS)
http://bigcoupe.com/phpBB3/viewtopic.php?f=24&t=28245

User avatar
nick88highline
Bigcoupe supporter
Posts: 298
Joined: Fri Feb 06, 2009 11:31 am
Location: Suffolk, UK

Re: power steering filter

Post by nick88highline » Fri Jan 04, 2019 4:34 pm

tmoretta wrote:
Thu Jan 03, 2019 2:03 am
I am in the process of swapping out/rebuilding the power steering pump in my '88 M6. I ordered a new filter for the 3 rib covered filter. When I remove the filter I see no filter present in the can , other than the screen. Could it be none belongs there, or is mine missing?
You should have the following in the power steering reservoir from top down: c-clip, bowl shaped metal strainer, thick washer, short spring, metal gauze filter (like an upside mushroom), c-clip, long thin spring, round metal cover plate, disposable filter with a removable rubber seal/gasket at the bottom. Without all these in place the oil won't be filtered properly. Sourcing the rubber seal on the filter was hard work as this is not listed as an E24 part even though it is required.
Filter is 32411128167 and rubber seal is 32411137778. Ideally you would want a rubber seal on the top and the bottom of the filter, but I don't think there is enough room.
Good luck.
Nick
BMW 635CSiA (1988)
BMW i3 (2016)
Jeep Grand Cherokee V8 (2000)
Morris Minor 1000 (1968)

User avatar
86_6series
Bigcoupe supporter
Posts: 367
Joined: Mon Apr 02, 2007 10:08 pm
Location: West Nyack, NY

Re: power steering filter

Post by 86_6series » Sat Jan 05, 2019 1:05 pm
