Lemforder Upper Control Arm Bushing wrong size?

Post in this forum for topics relating to suspension, steering, and brakes

Moderators: ron, bfons, GRNSHRK

Post Reply
gskrills
Posts: 13
Joined: Mon Mar 26, 2018 7:35 pm
Location: Houston

Lemforder Upper Control Arm Bushing wrong size?

Post by gskrills » Sat Feb 23, 2019 8:43 pm

I am currently replacing my upper control arms on my '89 635Csi and I bought the 4 pc Lemforder kit from FCP Euro : https://www.fcpeuro.com/products/bmw-co ... ecesteel-l

I went to install the new UCA and I noticed the bushing is 6 mm smaller in width than the one I removed. Am I ok to install this? I feel like I might have the wrong part but almost all sites I see say this Lemforder part will fit.

baders
Bigcoupe Contributor
Posts: 965
Joined: Sun Nov 23, 2014 7:38 am
Location: Perth Australia

Re: Lemforder Upper Control Arm Bushing wrong size?

Post by baders » Sat Feb 23, 2019 10:24 pm

The part numbers certainly seem correct. Have you contacted FCPEuro ?
1986 635csi LOCUTUS / Arktis Blau Metallic / Pearl Beige / S38B36/ Close ratio dogleg 5sp
2002 E46 M3 / Topaz Blau Metallic / Black Nappa / 6 speed SMG software tuned / Bilstein PSS10 Coilovers

gskrills
Posts: 13
Joined: Mon Mar 26, 2018 7:35 pm
Location: Houston

Re: Lemforder Upper Control Arm Bushing wrong size?

Post by gskrills » Sat Feb 23, 2019 10:30 pm

Not yet. It's the weekend, otherwise I would. I plan to when they're open.

wattsmonkey
Bigcoupe supporter
Posts: 1434
Joined: Mon Jul 16, 2007 2:58 pm
Location: Cheltenham, U.K.

Re: Lemforder Upper Control Arm Bushing wrong size?

Post by wattsmonkey » Sun Feb 24, 2019 10:29 am

The one you removed looks like the reinforced version from the E32, which needed to be ground to size. Is it possible the larger bush was forced into place?
"Most of it necessary; all of it enjoyable[!]" LJKS
'84 635CSi, dogleg fun

wattsmonkey
Bigcoupe supporter
Posts: 1434
Joined: Mon Jul 16, 2007 2:58 pm
Location: Cheltenham, U.K.

Re: Lemforder Upper Control Arm Bushing wrong size?

Post by wattsmonkey » Sun Feb 24, 2019 10:42 am

Can’t get picture to work on this iPad, but can confirm uca bush on a spare arm removed from an e24 is just over 50mm wide as per one you just bought.
"Most of it necessary; all of it enjoyable[!]" LJKS
'84 635CSi, dogleg fun

gskrills
Posts: 13
Joined: Mon Mar 26, 2018 7:35 pm
Location: Houston

Re: Lemforder Upper Control Arm Bushing wrong size?

Post by gskrills » Sun Feb 24, 2019 3:06 pm

After looking up E32 UCA's and their bushings, it looks like you are correct. The old one looks exactly like that: https://www.fcpeuro.com/products/bmw-co ... 21139999my

Do you have any idea why or how this is possible on my 6 series? So far I see my solutions as being ordering new bushing and having a shop press them in the new parts or ordering new control arms and trying to send the ones I have now back to FCP Euro.

brickwhite
Bigcoupe supporter
Posts: 651
Joined: Wed Sep 01, 2010 3:29 pm
Location: Jackson, MO USA

Re: Lemforder Upper Control Arm Bushing wrong size?

Post by brickwhite » Sun Feb 24, 2019 4:33 pm

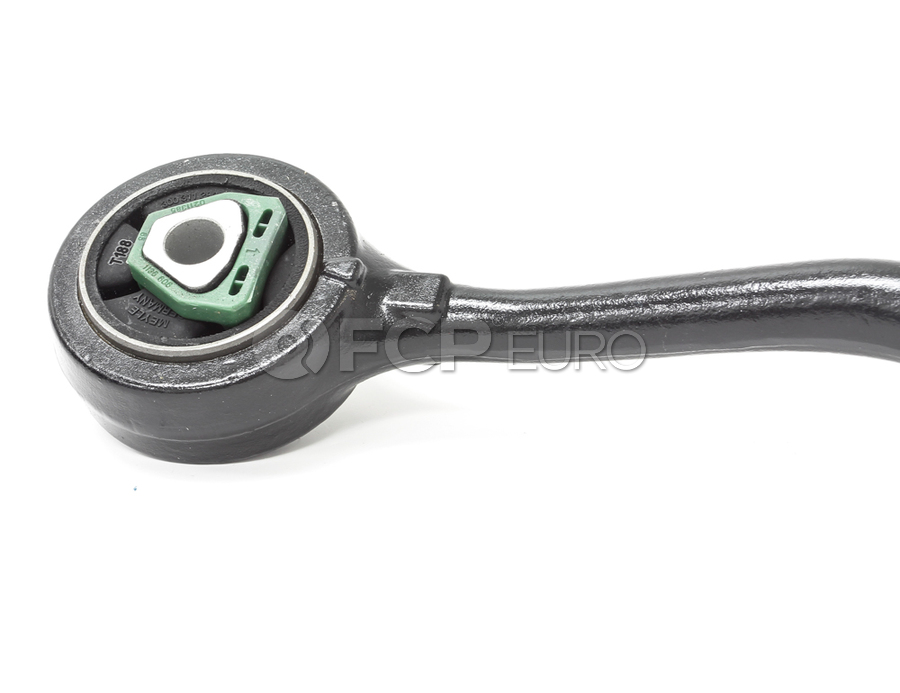

I would stick with Myle HDs for Uppers...send the LEMS back.

https://www.fcpeuro.com/products/bmw-up ... 21132354my

- 12 535i
- 92 325ic
- 88 535is
- 85 M635csi

- 63 Triumph Tr-4

gskrills
Posts: 13
Joined: Mon Mar 26, 2018 7:35 pm
Location: Houston

Re: Lemforder Upper Control Arm Bushing wrong size?

Post by gskrills » Sun Feb 24, 2019 6:44 pm

Assuming that the steel portion of the meyle and lemforder are likely almost identical, you can see that the ones pulled out of my car have a much wider bushing race than the ones pictured in the FCP Euro link. I'm beginning to think the previous owner managed to shove E32 bushings / control arms in there. I'll try to get a picture of the mount to see if anyone else is in agreement.

gskrills
Posts: 13
Joined: Mon Mar 26, 2018 7:35 pm
Location: Houston

Re: Lemforder Upper Control Arm Bushing wrong size?

Post by gskrills » Sun Feb 24, 2019 7:32 pm

Here is the UCA mount on my car. I placed the UCAs in the gap just for reference (they are aimed towards the back of the car). It looks like it is bowed out towards the mounting holes. I measured around 57mm gap at the mounting holes and 51mm gap a bit closer to the chassis. You can also see the gap I currently have with the new Lemforder UCAs vs what was in there.

I am ok with bending these back to the right gap if we come to the conclusion that the wrong UCAs were in there to begin with. What do you guys think?

(don't mind the super scary exhaust welds :/ I have a Super Sprint on the way!)
capture 5.PNG
capture 5.PNG (974.59 KiB) Viewed 488 times
capture 4.PNG
capture 4.PNG (863.02 KiB) Viewed 488 times
capture 3.PNG
capture 3.PNG (946.86 KiB) Viewed 488 times

User avatar
tschultz
Bigcoupe supporter
Posts: 2376
Joined: Wed Jul 07, 2010 10:54 pm
Location: Colorado
Contact:

Re: Lemforder Upper Control Arm Bushing wrong size?

Post by tschultz » Mon Feb 25, 2019 2:55 pm

Certainly seems like they were forced in there and the sheetmetal bowed out a bit. I would try it but would not use them if there any side to side slop.

I like Meyle HD as a compromise of cost vs lifecycle. You can get the replacement bushings for something like $40 and then press them into the standard arms, even a worn out pair if the ball joints are good.

bpoliakoff
Bigcoupe supporter
Posts: 2638
Joined: Thu Sep 28, 2006 9:28 pm
Location: scottsdale, arizona
Contact:

Re: Lemforder Upper Control Arm Bushing wrong size?

Post by bpoliakoff » Mon Feb 25, 2019 6:25 pm

wattsmonkey wrote:
Sun Feb 24, 2019 10:42 am
Can’t get picture to work on this iPad, but can confirm uca bush on a spare arm removed from an e24 is just over 50mm wide as per one you just bought.
I think The "Monkey" is correct. Years ago on the old Roadfly forum this was discussed many times and the answer was as wattsmonkey said. To buy the heavier duty bushing and then grind to size. This one probably wasn't ground.
81 Euro 635 M90 with motronic. Currently under a complete nut and bolt restoration. Pictures at
flickr.com/photos/bertsphotos.

gskrills
Posts: 13
Joined: Mon Mar 26, 2018 7:35 pm
Location: Houston

Re: Lemforder Upper Control Arm Bushing wrong size?

Post by gskrills » Mon Feb 25, 2019 6:45 pm

Yup, that seems to be the consensus. I will be installing the correct ones and bending the mounting brackets back into shape in the process. Thanks everyone for the help on this!

Pod
Bigcoupe supporter
Posts: 3960
Joined: Tue Mar 16, 2010 8:32 pm
Location: usually in the barn, Kent, England.

Re: Lemforder Upper Control Arm Bushing wrong size?

Post by Pod » Thu Feb 28, 2019 10:40 am

Interesting thread! Good luck with the installation.
