My 88 635sci Highline (Uk)

Post by Mark Shutt » Sun Jan 03, 2016 6:10 pm

had my E24 about 2 months now and although bought as a nice example that can be driver straight away there's still lots of small things to do to make perfect and I hate it when things don't work so here's my progress so far.. rather than start lots of smaller threads about numerous stuff I'll try to keep most things in this thread 8)

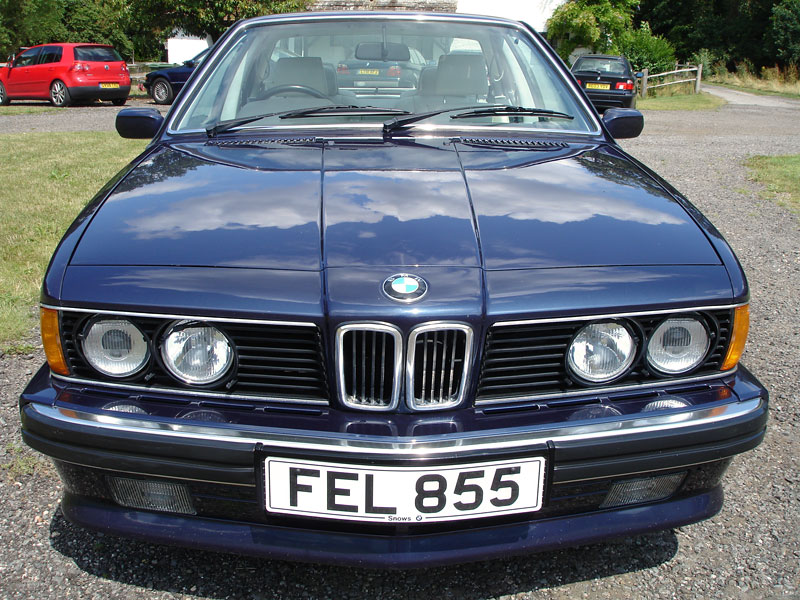

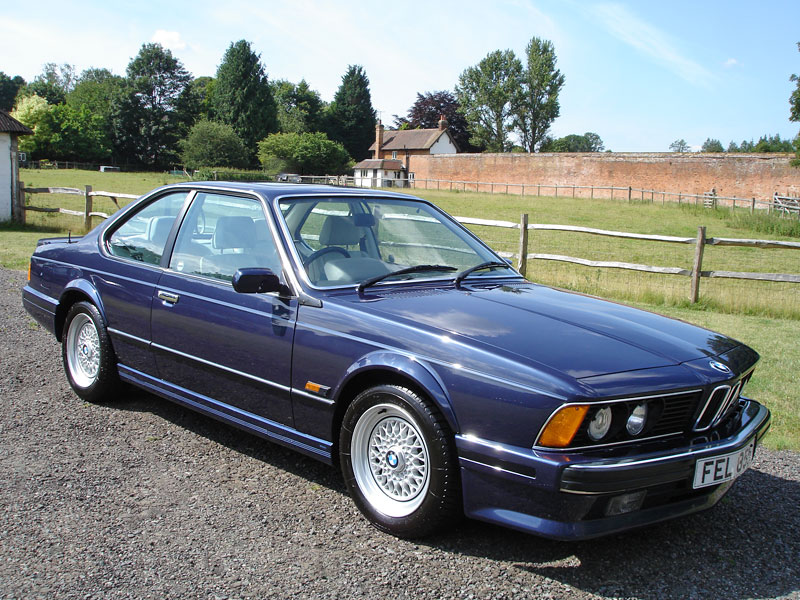

here she is in her original colour Royal blue with Lotus white leather, love the colour combo, I'm still amazed how original it is, never painted and never welded!


my main project right now is detailing the engine compartment, it's got loads of baked on Cosmoline everywhere and proving a right paint to remove, thinners on a rag seems to be the only thing to shift it right now :roll: I've ordered a few parts including the correct later hood struts (mine are too long!) and also a set of insulation pads as the original ones are ugly! any tips on removing these and the Cosmoline would be appreciated!

I'm also fixing the left hand headlight wiper motor as it was seized and the thermal switch blown- waiting for part to arrive.

jobs I've carried out so far successfully are:-

fix electric headrest,
fix variable blower motor operation,
fix central locking operation by fitting a key-less entry system,
Last edited by Mark Shutt on Mon May 21, 2018 6:39 am, edited 1 time in total.
1988 635csi Auto Highline, Royal blue with Lotus white.
viewtopic.php?f=25&t=26461&p=189478#p189478

JohnRogers
Bigcoupe supporter
Posts: 431
Joined: Tue Jun 02, 2009 10:05 pm
Location: Richmond, London

Re: My 88 635sci Highline (Uk)

Post by JohnRogers » Sun Jan 03, 2016 6:23 pm

Lovely sight. Well done.

User avatar
olympia57
Bigcoupe supporter
Posts: 1170
Joined: Thu Sep 13, 2012 1:47 pm
Location: Ireland

Re: My 88 635sci Highline (Uk)

Post by olympia57 » Sun Jan 03, 2016 7:55 pm

Gorgeous car , well worth waiting for .
I wish you much enjoyment with it and look forward to reading your progress.
Don
1981 635 series 1

wattsmonkey
Bigcoupe supporter
Posts: 1434
Joined: Mon Jul 16, 2007 2:58 pm
Location: Cheltenham, U.K.

Re: My 88 635sci Highline (Uk)

Post by wattsmonkey » Sun Jan 03, 2016 8:45 pm

Absolutely beautiful! I have to admit that the side skirts look even better on the highline than on the chrome bumper cars.
"Most of it necessary; all of it enjoyable[!]" LJKS
'84 635CSi, dogleg fun

BenM635i
Bigcoupe supporter
Posts: 120
Joined: Thu Dec 10, 2015 7:23 pm
Location: St Albans, UK

Re: My 88 635sci Highline (Uk)

Post by BenM635i » Sun Jan 03, 2016 9:21 pm

She is a beautiful thing, shiny and rust free too which in Blighty must be a rare thing.

Cherish the girl :) as she is worth it.
'85 M635 #160

baders
Bigcoupe Contributor
Posts: 965
Joined: Sun Nov 23, 2014 7:38 am
Location: Perth Australia

Re: My 88 635sci Highline (Uk)

Post by baders » Sun Jan 03, 2016 10:24 pm

Beautiful car Mark.
1986 635csi LOCUTUS / Arktis Blau Metallic / Pearl Beige / S38B36/ Close ratio dogleg 5sp
2002 E46 M3 / Topaz Blau Metallic / Black Nappa / 6 speed SMG software tuned / Bilstein PSS10 Coilovers

User avatar
Mark Shutt
Bigcoupe supporter
Posts: 214
Joined: Sat Oct 17, 2015 2:58 pm
Location: Doncaster UK

Re: My 88 635sci Highline (Uk)

Post by Mark Shutt » Tue Jan 05, 2016 7:41 pm

thanks for all the kind remarks! gives me more enthusiasm to improve her further :)

a few parts landed today from Wallothnesch in Germany, good fast service! just fitted the correct size struts for the bonnet, they make a difference and should save my bonnet from twisting badly.. also got the insulation pads but need to spend hours removing the old stuff 1st :evil: maybe a hair dryer might help soften the old adhesive a bit?



lastly I had a go at fitting the new thermal switch in the L/H headlight motor but think something is not quite right, when power is hooked up to the violet/black wire the motor runs permanently without parking, will have to do some more research into this :-k

Last edited by Mark Shutt on Sun Jan 24, 2016 3:02 pm, edited 1 time in total.
1988 635csi Auto Highline, Royal blue with Lotus white.
viewtopic.php?f=25&t=26461&p=189478#p189478

User avatar
Ralph in Socal
Bigcoupe supporter
Posts: 2280
Joined: Tue Apr 14, 2009 3:32 am
Location: High Desert of SoCal

Re: My 88 635sci Highline (Uk)

Post by Ralph in Socal » Tue Jan 05, 2016 10:15 pm

Just plain jealous of all the M owners but that is a very pretty car Mark.

For the hood insulation, yes a heat gun of some sort to soften up the adhesive. Best to plastic tarp and tape off the entire engine compartment or front end of the car when removing the old stuff so you minimize clean up later.


Ralph
Last edited by Ralph in Socal on Sat Jan 09, 2016 10:08 pm, edited 1 time in total.
There is a very fine line between "Hobby" and Mental Illness.

85 635csi Zinno Auto
84 528i Euro
83 635 Euro Arktik
81 528i Kastanien 5-speed
88 528e Bronzit (Granpa Car)
86 535i Auto (For Sale)
81 633 csi (retired)

User avatar
jps635
Bigcoupe supporter
Posts: 667
Joined: Sat Feb 27, 2010 10:50 pm
Location: NZ

Re: My 88 635sci Highline (Uk)

Post by jps635 » Wed Jan 06, 2016 9:39 am

It''s not that bad a job to remove that old foam insulation. Like Ralph said cover the engine bay. Use something like attached pic to dissolve the adhesive.
Attachments
'85 635csi JPS (RA2-66)

User avatar
Mark Shutt
Bigcoupe supporter
Posts: 214
Joined: Sat Oct 17, 2015 2:58 pm
Location: Doncaster UK

Re: My 88 635sci Highline (Uk)

Post by Mark Shutt » Sat Jan 09, 2016 4:00 pm

got all the parts I ordered and started fitting them! fitted the thermal switch in the wiper motor and it actually worked on the car much to my amazement so very happy there to have fully operative headlamp washers/wipers 8)

fitted the new insulation pads today, glad that's one horrible job out the way but well pleased :) ended up using WD40 to soften the glue and scraped it off with a blade then washed with thinners. the adhesive cleaner I bought wasn't much use :roll:

Last edited by Mark Shutt on Sun Jan 24, 2016 2:59 pm, edited 2 times in total.
1988 635csi Auto Highline, Royal blue with Lotus white.
viewtopic.php?f=25&t=26461&p=189478#p189478

BenM635i
Bigcoupe supporter
Posts: 120
Joined: Thu Dec 10, 2015 7:23 pm
Location: St Albans, UK

Re: My 88 635sci Highline (Uk)

Post by BenM635i » Sun Jan 10, 2016 5:23 pm

Looks nice under the bonnet - the new foam makes a big difference to the overall look.

I can confirm that the removal of the old foam + 30 year old goopy stuff is a horrible job, took me 3 hours to do. Just back from the garage after sticking the new foam in place using 3M #80 spray adhesive.. used the foam from US of A:

http://www.ebay.co.uk/itm/BMW-E24-Hood- ... pCpW7VqXQw

Very impressed with the quality, however my wallet is not. Worked out £100 delivered to Parcel Force, then another £30 customs thievery so all in £130. Closed cell though and looks rather nice, had to spend 10 minutes rubbing it fondly after i had stuck it in place.

Horrible job Mark but worth it!
'85 M635 #160

User avatar
olympia57
Bigcoupe supporter
Posts: 1170
Joined: Thu Sep 13, 2012 1:47 pm
Location: Ireland

Re: My 88 635sci Highline (Uk)

Post by olympia57 » Sun Jan 10, 2016 6:04 pm

BenM635i wrote:Looks nice under the bonnet - the new foam makes a big difference to the overall look.

I can confirm that the removal of the old foam + 30 year old goopy stuff is a horrible job, took me 3 hours to do. Just back from the garage after sticking the new foam in place using 3M #80 spray adhesive.. used the foam from US of A:

http://www.ebay.co.uk/itm/BMW-E24-Hood- ... pCpW7VqXQw

Very impressed with the quality, however my wallet is not. Worked out £100 delivered to Parcel Force, then another £30 customs thievery so all in £130. Closed cell though and looks rather nice, had to spend 10 minutes rubbing it fondly after i had stuck it in place.

Horrible job Mark but worth it!

http://www.wallothnesch.com/daemm-matte ... 00-00.html

€ 60 inc delivery ( circa £40)
1981 635 series 1

User avatar
Mark Shutt
Bigcoupe supporter
Posts: 214
Joined: Sat Oct 17, 2015 2:58 pm
Location: Doncaster UK

Re: My 88 635sci Highline (Uk)

Post by Mark Shutt » Sun Jan 10, 2016 6:09 pm

yes, was high as a kite cleaning it all down with thinners but the results are well worth it, still got loads of cosmoline to clean off the inner wing areas and engine parts, thinners seems the only thing that shifts it!

how easy is the inlet manifold to remove? was thinking about giving that the once over and it's always a better job with something off the car and done right, just don't want any unwanted surprises!! got the air filter housing and fan blower cover to repaint too (more enjoyable jobs!)

Mark.
1988 635csi Auto Highline, Royal blue with Lotus white.
viewtopic.php?f=25&t=26461&p=189478#p189478

User avatar
Mark Shutt
Bigcoupe supporter
Posts: 214
Joined: Sat Oct 17, 2015 2:58 pm
Location: Doncaster UK

Re: My 88 635sci Highline (Uk)

Post by Mark Shutt » Sun Jan 10, 2016 6:12 pm

olympia57 wrote:http://www.wallothnesch.com/daemm-matte ... 00-00.html

€ 60 inc delivery ( circa £40)
that's the one I used, very close to OEM and simply sticks on very strongly (you get one shot at it!)
1988 635csi Auto Highline, Royal blue with Lotus white.
viewtopic.php?f=25&t=26461&p=189478#p189478

BenM635i
Bigcoupe supporter
Posts: 120
Joined: Thu Dec 10, 2015 7:23 pm
Location: St Albans, UK

Re: My 88 635sci Highline (Uk)

Post by BenM635i » Mon Jan 11, 2016 8:35 am

olympia57 wrote:
I know, saw this on another forum though... was a Christmas present to the car (only just started working on it so wanted to spoil her)

Read the below blurb then clicked 'buy' ;)

"It adds a much cleaner look to your engine compartment, holds up to water, oil, petrol and mildew, much better than the OEM hood pads and keeps the exterior of the hood cool while not reflecting engine heat back down toward your intake. It's actually made for covering the firewall in aircraft and is FAA approved for aircraft.

Compare this hood liner to a factory original or factory replacement.

Factory Liner My Liner
Will it rot? Yes No
Material Latex Foam Vinyl Nitrile
Fire Retardant No Yes
Sound Insulator Yes Yes
Heat Insulator Somewhat Yes
Oil resistant No Yes
Chemical resistant No Yes
Water resistant No Yes
Mildew Resistant No Yes
Washable No Yes
Nifty BMW logo No Yes"


It is 'posh'!
'85 M635 #160

User avatar
Mark Shutt
Bigcoupe supporter
Posts: 214
Joined: Sat Oct 17, 2015 2:58 pm
Location: Doncaster UK

Re: My 88 635sci Highline (Uk)

Post by Mark Shutt » Sun Jan 24, 2016 2:56 pm

done a bit more detailing recently, finished the blower motor area and repainted the cover which turned out nice :) I re-wrapped the wiring harness in cloth tape too and that looks nice too :)

I'm still battling on with the Cosmoline, that stuff is just evil, seems the only thing to shift it is thinners!

1988 635csi Auto Highline, Royal blue with Lotus white.
viewtopic.php?f=25&t=26461&p=189478#p189478

MSGGrunt
Bigcoupe supporter
Posts: 521
Joined: Fri May 15, 2015 4:43 pm
Location: Western, MA USA

Re: My 88 635sci Highline (Uk)

Post by MSGGrunt » Sun Jan 24, 2016 4:37 pm

I need to paint my blower cover as well. What did you use to paint it? Is it glossy, semi-gloss, satin?

I have the hood foams for my car as but with it 10 degrees here in New England I think it will wait until closer to spring.

User avatar
Mark Shutt
Bigcoupe supporter
Posts: 214
Joined: Sat Oct 17, 2015 2:58 pm
Location: Doncaster UK

Re: My 88 635sci Highline (Uk)

Post by Mark Shutt » Sun Jan 24, 2016 4:42 pm

MSGGrunt wrote:I need to paint my blower cover as well. What did you use to paint it? Is it glossy, semi-gloss, satin?
it's supposed to be gloss paint even though I wanted satin, however when it dried in front of space heater it went satin anyway as it dried too quickly to flow so turned out just how I wanted! I can't wait to paint the air filter housing and do something with the alloy parts of the engine then it'll look nice but until then I'm battling on with the dreaded Cosmoline :evil:
1988 635csi Auto Highline, Royal blue with Lotus white.
viewtopic.php?f=25&t=26461&p=189478#p189478

songzunhuang
Bigcoupe supporter
Posts: 844
Joined: Fri Aug 14, 2015 10:04 am
Location: Silicon Valley, CA
Contact:

Re: My 88 635sci Highline (Uk)

Post by songzunhuang » Sun Jan 24, 2016 7:14 pm

BenM635i wrote:Looks nice under the bonnet - the new foam makes a big difference to the overall look.

I can confirm that the removal of the old foam + 30 year old goopy stuff is a horrible job, took me 3 hours to do. Just back from the garage after sticking the new foam in place using 3M #80 spray adhesive.. used the foam from US of A:

http://www.ebay.co.uk/itm/BMW-E24-Hood- ... pCpW7VqXQw

Very impressed with the quality, however my wallet is not. Worked out £100 delivered to Parcel Force, then another £30 customs thievery so all in £130. Closed cell though and looks rather nice, had to spend 10 minutes rubbing it fondly after i had stuck it in place.

Horrible job Mark but worth it!
My car needs this. My foam is so bad that when ever I work on the car and brush my head on the foam, several bits fall off in my hair and onto the motor. I was wondering where to get this stuff. Now I know.
-----
Song Huang
1984 633CSi
Last 7 of VIN: 6997383

songzunhuang
Bigcoupe supporter
Posts: 844
Joined: Fri Aug 14, 2015 10:04 am
Location: Silicon Valley, CA
Contact:

Re: My 88 635sci Highline (Uk)

Post by songzunhuang » Sun Jan 24, 2016 7:20 pm

Mark Shutt wrote:done a bit more detailing recently, finished the blower motor area and repainted the cover which turned out nice :) I re-wrapped the wiring harness in cloth tape too and that looks nice too :)

What are those assemblies to the left and right of the blower cover? I'm not talking about the concentrated windshield washer (on the left side) but the unit to the right of it. My car doesn't have that. Also on the right of the blower cover, there's nothing in that area in my car. I did notice mounting points for screws or bolts, but there's nothing there. Now that I see your picture, my curiosity is peaked.

When I painted my blower motor cover, I actually used high temp engine paint. It had the proper satin finish.
-----
Song Huang
1984 633CSi
Last 7 of VIN: 6997383

User avatar
Mark Shutt
Bigcoupe supporter
Posts: 214
Joined: Sat Oct 17, 2015 2:58 pm
Location: Doncaster UK

Re: My 88 635sci Highline (Uk)

Post by Mark Shutt » Sun Jan 24, 2016 7:32 pm

wiper motor to the left, not sure what that is on right but on a LHD car it's to the left..
1988 635csi Auto Highline, Royal blue with Lotus white.
viewtopic.php?f=25&t=26461&p=189478#p189478

MSGGrunt
Bigcoupe supporter
Posts: 521
Joined: Fri May 15, 2015 4:43 pm
Location: Western, MA USA

Re: My 88 635sci Highline (Uk)

Post by MSGGrunt » Sun Jan 24, 2016 11:55 pm

On my LHD car my wiper motor is on the opposite side as yours and has a brace covering it. Something that was added in later years maybe? Mine needs painting along with the blower cover. I also need to clean up and reseal where the harness enters the cabin. Someday when the warmer weather arrives I hope a detailing will have the under hood of my car looking as clean as yours.
Attachments
Wiring Harness Through Body.JPG
Wiring Harness Through Body.JPG (194.21 KiB) Viewed 4737 times

User avatar
Desert635
Bigcoupe supporter
Posts: 114
Joined: Sat May 30, 2015 2:24 pm
Location: United Arab Emirates, Sharjah

Re: My 88 635sci Highline (Uk)

Post by Desert635 » Mon Jan 25, 2016 7:08 am

On my lhd the wiper motor is on the drivers side. The opposite side has the abs module (Bosch Number: 0 265 100 021) I removed it out of curiosity to see what it is
1987 635CSI Japan Spec
Was: R̶o̶y̶a̶l̶b̶l̶a̶u̶ ̶M̶e̶t̶a̶l̶l̶i̶c̶ ̶(̶1̶8̶9̶)̶
Now: Tiefseeblau Metallic (A76)

VIN: 0766354

ron
Senior Member
Posts: 4385
Joined: Sat Jul 10, 2004 11:35 am
Location: South Wales U.K.

Re: My 88 635sci Highline (Uk)

Post by ron » Mon Jan 25, 2016 7:12 am

Mark Shutt wrote: ...how easy is the inlet manifold to remove?
Not an easy job and even more of a bastard to refit. The awkward part is getting your hand underneath to refit the wave washers and nuts!
They are ALWAYS rustier than you thought!!!!!!
'85 M #228
'87 M #367
'88 High line.
'80 735i

User avatar
Mark Shutt
Bigcoupe supporter
Posts: 214
Joined: Sat Oct 17, 2015 2:58 pm
Location: Doncaster UK

Re: My 88 635sci Highline (Uk)

Post by Mark Shutt » Mon Jan 25, 2016 3:35 pm

ron wrote:
Mark Shutt wrote: ...how easy is the inlet manifold to remove?
Not an easy job and even more of a bastard to refit. The awkward part is getting your hand underneath to refit the wave washers and nuts!
I'll give that a wide berth then! I'll clean it or spray it in situ and mask stuff up..
1988 635csi Auto Highline, Royal blue with Lotus white.
viewtopic.php?f=25&t=26461&p=189478#p189478

Post Reply

Who is online

Users browsing this forum: No registered users and 3 guests
